Specifications |
| Optical
Characteristics |

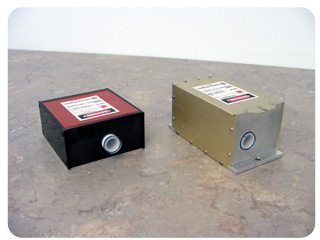

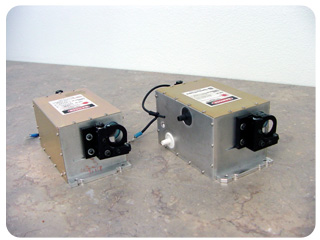

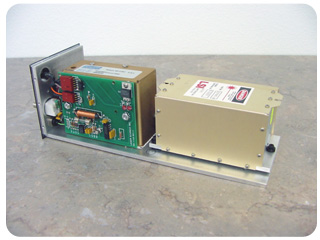

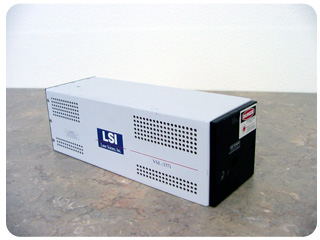

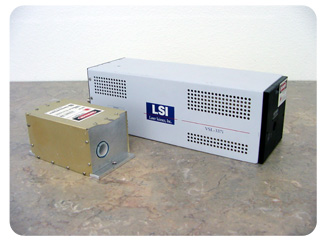

VSL-337i OEM |

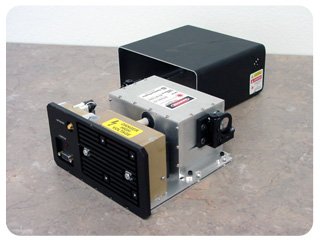

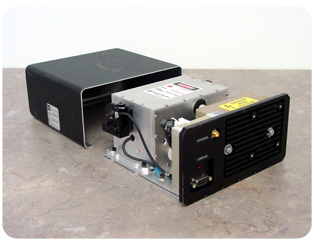

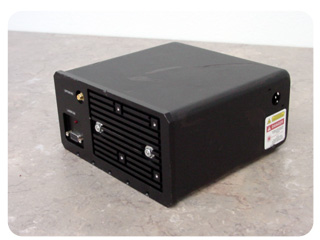

VSL-337-Si OEM |
| Wavelength |
337.1 nm |
337.1 nm |
| Spectral Bandwidth |
0.1
nm |
0.1 nm |
| Repetition Rate |
1 -
20 Hz
External Trigger |
Up to 20
Hz
External Trigger |
| Pulse Width, FWHM |
4 ns |
4 ns |
| Pulse Energy |
150
µJ |
300 µJ @
10 Hz
150 µJ @ 20 Hz |
| Pulse-to-Pulse Energy Stability |
3%
std. dev @ 10 Hz |
3% std.
dev @ 10 Hz |
| Peak Power |
36
kW |
75
kW |
| Average Power |
3 mW
@ 20 Hz |
3 mW @ 10
Hz nm |
| Beam Size |
3 x
7 mm |
|
| Beam Divergence, Full Angle |
3 x
8 mrad |
0.5
mrad typical |
| Beam Area |
|
35 mm2 |
|
Electrical
Characteristics |
VSL-337i OEM |
VSL-337-Si OEM |
| External Trigger |
TTL,
Optoisolated |
TTL,
Optoisolated |
| Trigger In to Optical Pulse Out |
<
700 ns; < 20 ns
std. dev. jitter |
< 1
µs; < 40 ns
std. dev. jitter |
| Power Consumption |
24 W @ 20 Hz |
15 W @
10 Hz
24 W @ 20 Hz |
| Optosync Output |
|
TTL 50Ω |
| Optical Pulse to Optosync
Delay |
|
50 ns; <
500 ps
std. dev. jitter |
|
Electric Service Requirements |
VSL-337i OEM |
VSL-337-Si OEM |
| Voltage |
+24
VDC |
+24 VDC |
| Current |
3 A
Peak
1 A average @ 20 Hz |
< 1 A
Peak
600 mA average @ 10 Hz |
|
Environment |
VSL-337i OEM |
VSL-337-Si OEM |
| Temperature Range |
4 -
40°C
(40 - 105°F) |
4 - 40°C
(40 - 105°F) |
| Humidity (non-condensing) |
0 -
95% |
0 - 95% |
| Altitude |
0 -
3000 m
(0 - 9800 ft) |
0 - 3000
m
(0 - 9800 ft) |
